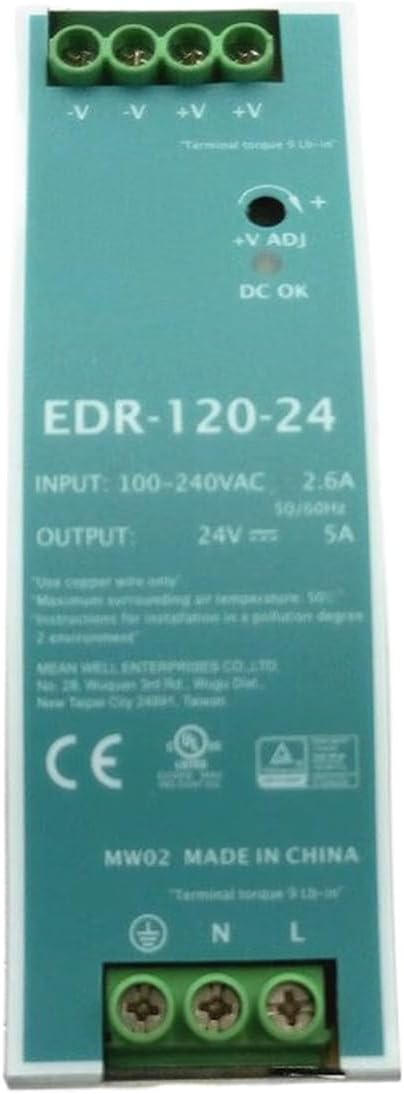

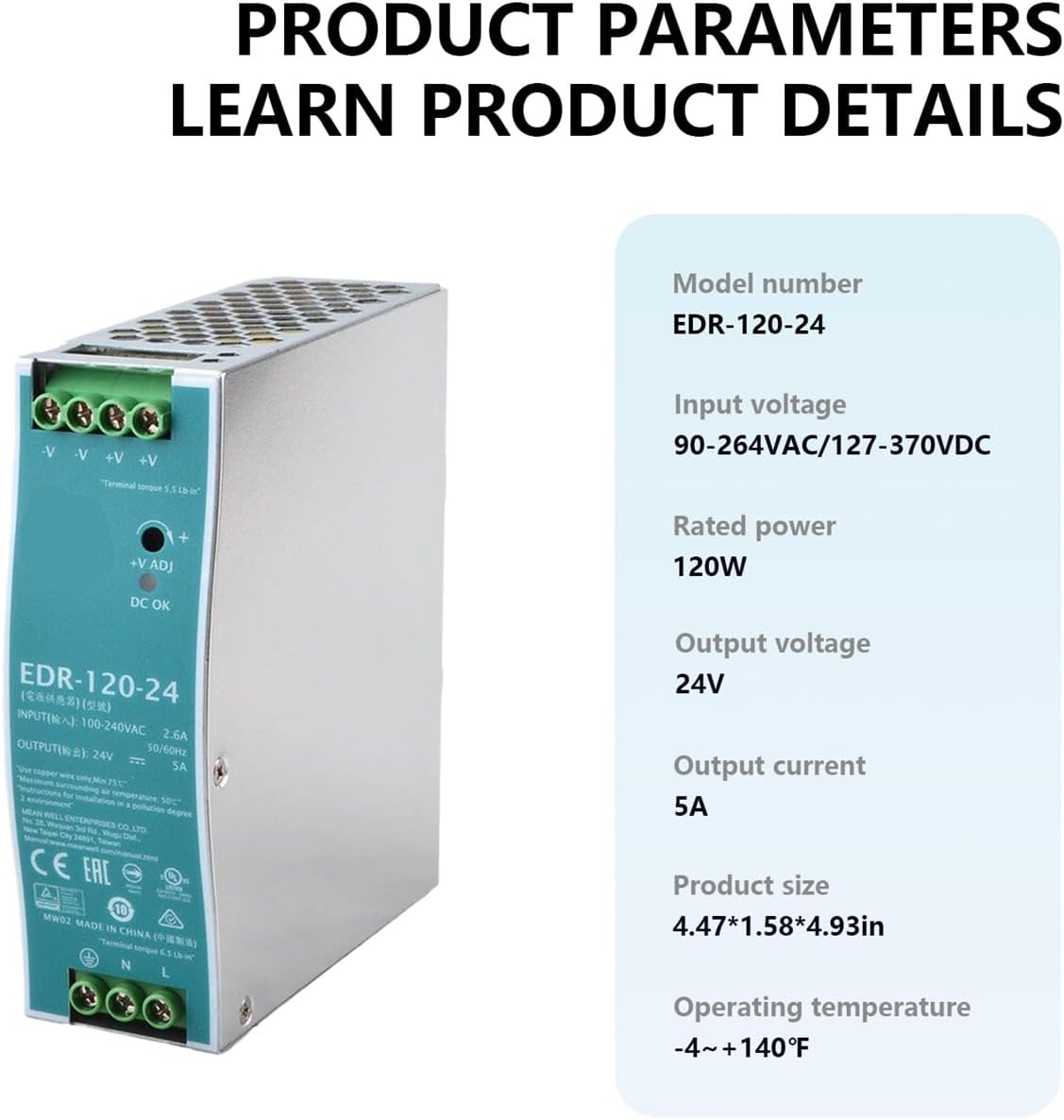

EDR-120-24 24V 5A 120W Ultra-Thin Din Rail Power Supply, 90-264VAC Input, UL/CE Certified for Industrial Automation

"The EDR - 120 is an economical and slim 120W DIN rail power supply series. It is designed to be installed on either TS - 35/7.5 or TS - 35/15 mounting rails. With a width of only 40mm, its compact body helps save valuable space inside cabinets. This series features a universal AC input that can handle voltages ranging from 90VAC to 264VAC. Moreover, it complies with BS EN/EN61000 - 3 - 2, the European Union's standard for regulating harmonic current. The EDR - 120 is encased in a metal housing, which significantly improves its power dissipation capabilities. Boasting a high working efficiency of up to 88.5%, the entire series can operate within an ambient temperature range of - 20°C to 60°C under natural air convection. It incorporates a constant - current mode for effective over - load protection, making it suitable for a wide variety of inductive or capacitive applications. Equipped with comprehensive protection functions and holding relevant certificates for industrial control apparatus, such as UL508, TUV BS EN/EN62368 - 1, etc., the EDR - 120 emerges as a highly competitive power supply solution for industrial applications."

• Industrial 24V DIN Rail Power:POWALK EDR-120-24 delivers stable 24VDC/5A output (120W) in compact DIN rail design for reliable industrial automation power.
• High-Efficiency Power Solution:The POWALK EDR-120-24 delivers exceptional 87.5% efficiency, significantly reducing energy consumption and operational costs. Engineered for precision applications, it features ultra-low ripple and noise (<150mVp-p) to ensure clean, stable power for sensitive industrial equipment.
• Industrial-Grade Toughness:The EDR-120-24 features a rugged metal housing, operating from -20°C to +60°C with OVP/OCP protection for reliable performance in harsh industrial environments.
• Space-Saving DIN Rail Design:The EDR-120-24's compact form factor enables quick DIN rail mounting, optimizing control cabinet space while simplifying industrial system integration.
• Globally Certified Safety:The EDR-120-24 meets UL60950-1, CUL (CSA 22.2), and EN60335-1 standards, ensuring reliable, compliant operation across industrial applications.
