518APH-12 Magnetic Switch for Bandit Chipper Marine Engine Heavy Duty Diesel Generator Engines and Distributor Ignition (25700147)
4.3 (136 items)
Limited Time SaleUntil the end
11
27
16
$33.59 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $55.99
Product details
| Management number | 220783958 | Release Date | 2026/05/03 | List Price | $22.40 | Model Number | 220783958 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 1.The 518APH-12 allows for Swichgage and/or N.C. contacts to be wired "Closed Loop" (in series). Any contact open or Swichgage contact close in the circuit shunt trips the 518APH-12. Use for distributor ignition or diesel engines.
- 2.【Product Parameters】: Contact Rating ：10 A, Coil Circuit Resistance ： 339 ohms ± 10% 12 Volt / 678 ohms ± 24 Volt , Minimum Latch Voltage : 12 Volt model: 10 VDc / 24 Volt model: 20 VDC, Minimum Latch Current 12 volt model: 30 mA / 24 Volt model: 30 mA , Operating Temperature Range: -40 to 176 °F(-40 to 80'C)
- 3.Compatible with Control System on Various Bandit Chipper Marine Engine Heavy Duty Diesel Generator Engines and Distributor

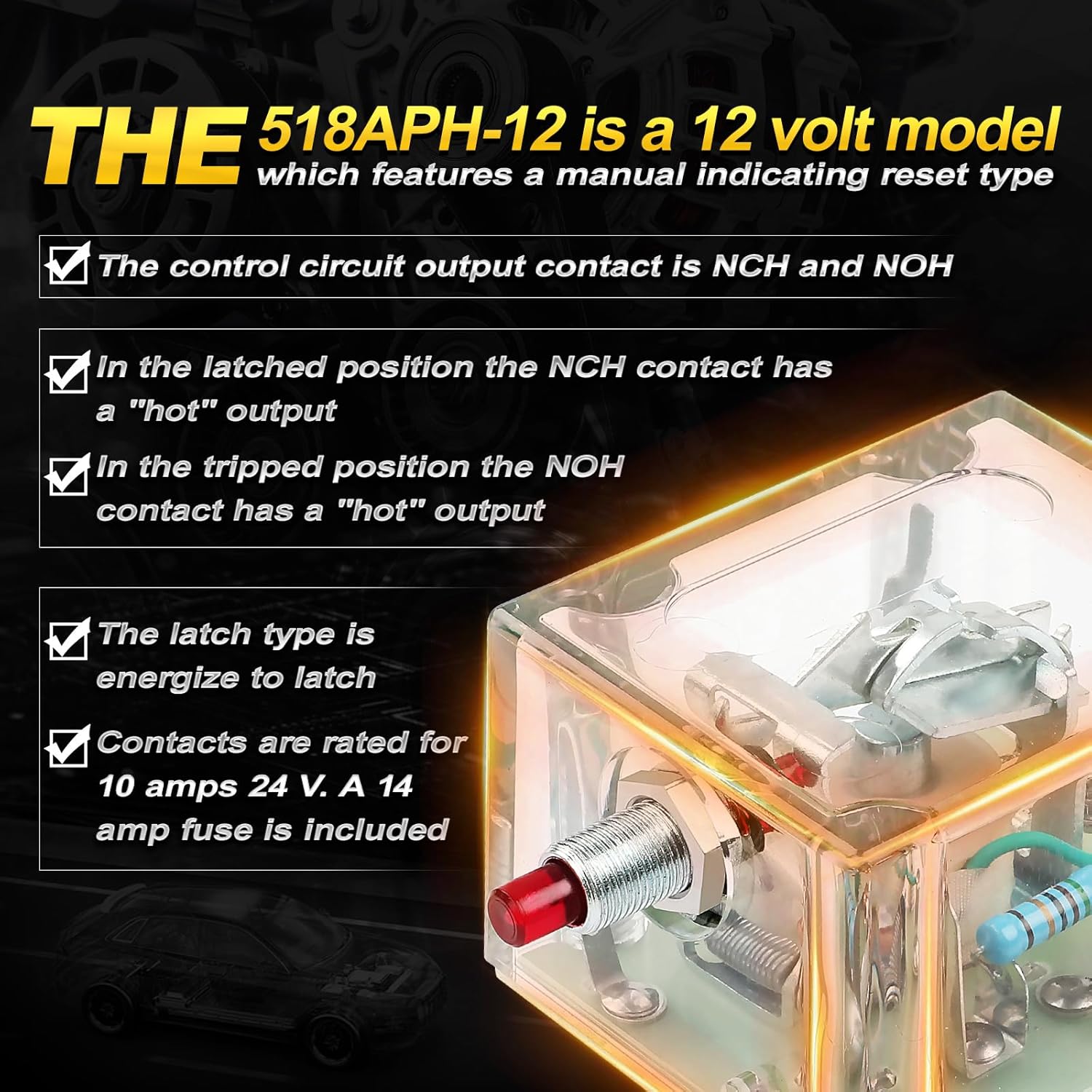

- 4. The 518APH-12 is a 12 volt model which features a manual indicating reset type,The control circuit output contact is NCH and NOH,In the latched position the NCH contact has a "hot" output; in the tripped position the NOH contact has a "hot" output , The latch type is energize to latch. Contacts are rated for 10 amps 24 V. A 14 amp fuse is included.
- 5. Energized to run models allow Closed Loop circuitry,Others draw momentary power to trip, Configurations are available for contact make or contact break to cause shutdown. Some models have both make and break contacts.
| Terminal | Push on |
|---|---|
| Brand Name | Fexhull |
| Unit Count | 1.0 Count |
| Part Number | 1 |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | Fexhull |
| Actuator Type | Push Button |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Surface Mount |
| Connector Type | Quick Connect |
| Control Method | Touch |
| Current Rating | 10 Amps |
| Operation Mode | ON-OFF |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 12 Volts (DC) |
| Number of Positions | 1 |
