4K 60Hz 65M HDMI KVM Extender, HDMI Extender with USB KVM Control RJ45 65m Over Over Cat5e/Cat6 POC with Loop Support USB Keyboard Mouse for PC Computer

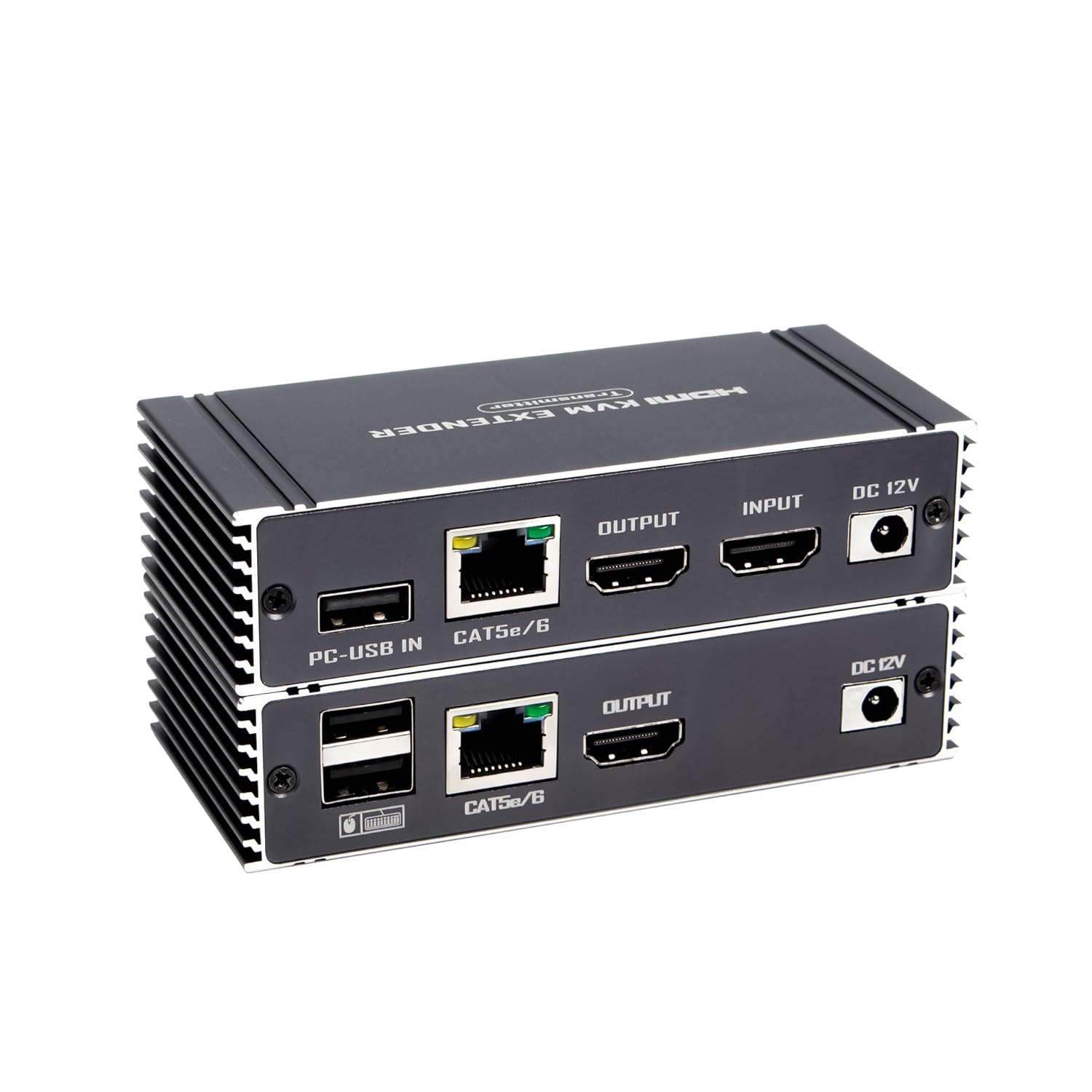

1.Introduction The USB 2.0 port is primarily used for connecting keyboards and mice and does not support other devices. The HDMIUSB KVM Extender can extend high definition HDMl and uSBsignals up to 213ft65m over a single Cat5el6 cable with zero latency. ltsupports HDMI 2.0 and USB 2.0 standards.Two-way POC (Power overCable) function allows either TX or RX be powered by a single 12V@1Apower supply. It's an ideal product for cyber bar and KVM extendermarkets. Video Parameters: 4K@60Hz resolution, with a maximum transmission distance of 65 metres. Physical Dimensions: Both the transmitter (TX) and receiver (RX) units measure 109mm (width) × 50mm (depth) × 24mm (height), offering a compact design for easy deployment. Weight: Each unit weighs approximately 100g, making it convenient for installation and movement. Interface Configuration: Transmitter (TX): HDMI input interface, USB IN interface (connects to the host), Cat5e/6 output interface (connects to the receiver), 12V DC power interface. Receiver (RX): HDMI output interface (connects to the display), USB interface (connects to peripherals), Cat5e/6 input interface (connects to the transmitter), 12V DC power interface. Package Contents Transmitter ×1 Receiver ×1 12V/1A power adapter ×1 User manual ×1 Application Scenarios Commercial Scenarios: Multi-screen display in internet cafes, audio-visual expansion in meeting rooms, remote monitoring in exhibition halls. Office Scenarios: KVM multi-device control, desktop extension across floors/rooms. Home Scenarios: Long-distance transmission of 4K audio-visual signals between the living room and bedroom. The OZDK5-DK6 offers users an inefficient and stable audio-visual and peripheral expansion solution with its high compatibility, long-distance transmission, low latency, and flexible power supply design.

• A:High-definition transmission and broad compatibility: Supports HDMI 2.0, HDCP 2.2, and DVI standards, enabling transmission of 4K@60Hz ultra-high-definition signals while preserving the HDMI audio channel, meeting the high-quality requirements of 4K display devices.
• B:Long-Distance Zero-Latency Transmission: Extends HDMI and USB signals up to 65 meters (213 feet) using a single Cat5e/6 network cable. Utilizes uncompressed transmission technology to achieve zero-latency signal transmission, ideal for long-distance audio-visual deployment scenarios.
• C:Bidirectional POC power supply functionality: Supports bidirectional power supply (POC) via HDMI/USB cables, requiring only a single 12V@1A power source to power either the transmitter (TX) or receiver (RX) end, simplifying cabling and reducing power consumption.
• D:USB 2.0 Full-Speed Transmission and Status Monitoring: Integrated USB 2.0 full-speed transmission functionality supports connection of KVM devices such as keyboards and mice; the USB status indicator light visually displays signal transmission status via flashing frequency (slow flash: no signal, fast flash: transmission in progress).
• E:Compact design and flexible deployment: Both the transmitter (TX) and receiver (RX) units measure 109mm × 50mm × 24mm and weigh 100g each, offering a compact form factor; supports dual display output for local and remote use, ideal for flexible deployment in scenarios such as internet cafes and KVM extenders.
